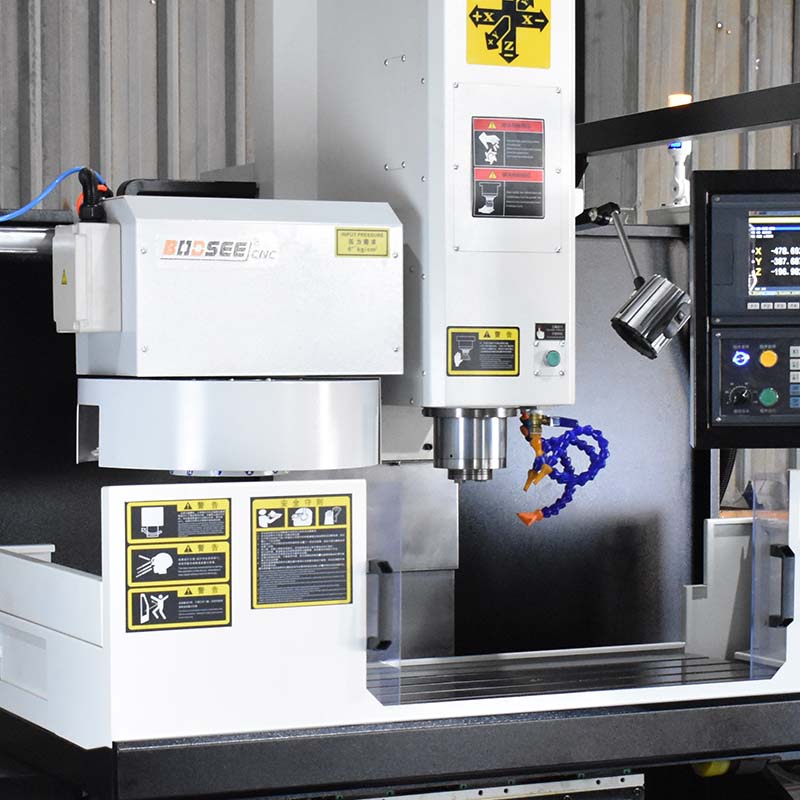

3 Axis Linear Way Vertical CNC Machine BT40 VMC Milling Machine
Product Description:
This VMC is suitable for mechanical processing and mold making, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher.
Production Specification:
| Model No. | CNC-940GM |
| X axis travel | 950mm |
| Y axis travel | 380mm |
| Z axis travel | 450mm |
| Distance from spindle nose to the work table | 120mm |
| Distance from spindle center to column guideway | 460mm |
| X rapid feed | 36m/min |
| Y rapid feed | 36m/min |
| Z rapid feed | 24m/min |
| X/Y axis feed motor rated power | 1.6/2.0kw |
| X/Y axis feed motor rated output torque | 7.7-8.4Nm |
| Z axis feed motor rated power | 2.6kw |
| Z axis feed motor rated output torque | 10Nm |
| Cutting rapid feed | 0-8000mm/min |
| The width of the triaxial linear guide | 35mm |
| The number of the slider in the X axis | 6 pieces |
| The number of the slider in the Y axis | 4 pieces |
| The number of the slider in the Z axis | 4 pieces |
| Triaxial screw size | 40/12mm |
| Work table size | 1500x420mm |
| The maximum load capacity | 400KG |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm |
| Spacing | 90mm |
| Positioning accuracy | 0.01mm |
| Repeat positioning accuracy | 0.008mm |
| Spindle speed range | 20-8000rpm/min |
| Main servo motor rated power | 3.7kw |
| Main servo motor 30 minute locked-rotor power | 5.5kw |
| Main servo motor rated output torque | 24Nm |
| Spindle sssembly dynamic balance mode | G1 |
| Feed motor connection form | Direct connection |
| Taper of spindle hole | BT40 |
| Tool changer | Carousel tool changer |
| Tool Capacity | 12piece |
| Max tool diameter (Full) | Ф75mm |
| Max tool weight | 7kg |
| Max tool length | 300mm |
| Cutting Tool Selection Mode | Forward and reverse arbitrary tool selection |
| Machine tool electric gross capacity | 10KVA |
| Power requirements | Customized |
| Dimension of machine tool | 1950x1600x2000 mm |
| Weight of machine | 1950KG |
| Machine protection shield | Half Cover/Semi enclosed |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece Sample:
FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3. What's the MOQ?
MOQ is 1 set.
4. What is your lead time?
It depends on customers’ requirement and quantity.
Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
